Top Insights into Overhead Crane Engineering Challenges

En quelques secondes, l'essentiel

• Structural integrity in cranes : La résistance des composants et les analyses par éléments finis garantissent la sécurité sous charges dynamiques.
• Custom crane solutions : L’ingénierie sur mesure s’adapte aux contraintes spatiales et opérationnelles des installations existantes.
• Trolley systems in cranes : Les systèmes de chariot précis assurent un déplacement fluide et évitent les défaillances mécaniques.
• Safety compliance in lifting : La conformité aux normes OSHA, ASME et ISO est essentielle pour la certification et l’exploitation.
• Engineering modifications : La modernisation avec capteurs intelligents ou nouveaux composants prolonge la durée de vie des équipements.

You’re standing on a factory floor, surrounded by steel beams and the low hum of machinery. Can you imagine this space relying solely on manual pulleys and brute strength to move tons of material? It’s a scene straight out of the early 1900s-effective for its time, but no match for today’s industrial rhythm, where precision, safety, and efficiency aren’t optional, they’re mandatory. The modern overhead crane isn’t just a lifting tool; it’s a highly engineered system shaped by physics, materials science, and real-world operational demands. And behind every reliable lift, there’s a team of engineers ensuring that each component meets rigorous standards.

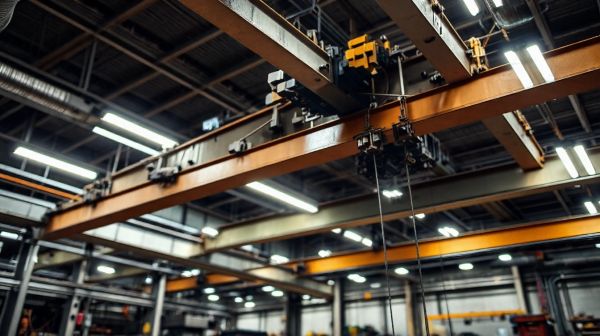

The Technical Foundations of Overhead Bridge Cranes

At the heart of any overhead crane system lies the principle of structural integrity-the ability to support heavy loads without failure, even under dynamic stress. Engineers don't just calculate static weight; they factor in movement dynamics like acceleration, deceleration, and lateral forces generated when a trolley shifts a load across the bridge. These variables create fluctuating stress patterns, particularly at weld joints and beam connections, which is why finite element analysis (FEA) has become a standard in modern design. This simulation technique allows engineers to identify stress concentrations before fabrication begins, drastically reducing the risk of premature fatigue.

Designing for Weight and Dynamic Loads

When designing for load capacity, engineers start with the worst-case scenario: maximum payload plus dynamic amplification. The American Society of Mechanical Engineers (ASME) B30 standards provide load testing guidelines, but the real challenge lies in tailoring these principles to site-specific conditions. For instance, a crane operating in a hot rolling mill faces thermal expansion issues, while one in an automotive line must endure repetitive high-frequency cycles. This is where custom crane solutions become essential-off-the-shelf models rarely account for such nuances. For specialized technical analysis on complex lifting systems, a partner like Smithwick Engineering stands as a reference for industrial teams.

Material Selection and Structural Integrity

Not all steel is created equal. In overhead crane engineering, the choice of steel grade directly affects both safety and longevity. High-tensile, low-alloy steels like S355 or A572 are commonly used for main girders because they offer superior strength-to-weight ratios. But strength alone isn’t enough-weld quality is just as critical. Poor welds create stress risers, which accelerate crack propagation over time. That’s why certified welding procedures and non-destructive testing (NDT) like ultrasonic or radiographic inspection are non-negotiable in high-duty applications. A well-engineered crane, built with proper materials and techniques, can last 25 years or more with routine maintenance-far beyond the lifespan of a poorly assembled counterpart.

Critical Components for Operational Safety

While the bridge and girders form the backbone of the system, operational safety hinges on the integration of specialized components-from hoists to trolleys to control systems. Each plays a distinct role in ensuring a safe, efficient lift. Modern cranes are more than mechanical devices; they’re ecosystems of interdependent systems, each requiring precise engineering and regular validation.

The Role of High-Precision Trolley Systems

The trolley is the mobile unit that travels along the bridge, carrying the hoist and load. Precision matters here: misalignment can cause binding, premature rail wear, or even derailment. High-duty trolleys use four-wheel drive configurations with independent motors to ensure even load distribution and prevent skewing. In retrofit scenarios, where existing rails may not meet modern tolerances, engineers often recommend rail reconditioning or adaptive trolley designs that accommodate slight deviations without sacrificing performance. It’s a reminder that even the most advanced crane can’t overcome poor infrastructure.

Lifting Mechanisms and Industrial Hoists

Hoists come in electric, hydraulic, and manual variants, each suited to different operational profiles. Electric wire rope hoists dominate in high-cycle environments like steel plants or foundries, where lifting speeds and reliability are crucial. Chain hoists, though slower, offer fine control and are common in assembly or maintenance areas. The key is matching the hoist to the duty cycle-using a light-duty hoist in a heavy-duty setting leads to early failure. Engineers assess this using classification groups (M1 to M8) defined by FEM (Fédération Européenne de la Manutention), which consider load frequency, average weight, and operating hours.

Maintaining Safety Compliance in Lifting

Safety isn’t a feature-it’s a requirement. Compliance with standards like OSHA, ASME B30, and ISO 9927 ensures that cranes are designed, installed, and maintained to protect both personnel and equipment. This includes everything from load testing and limit switches to operator training and documentation. A critical step is the pre-commissioning inspection, where engineers verify that all safety systems function correctly before the crane goes live. This isn’t just a formality; it’s a safeguard against catastrophic failures.

Comparative Analysis of Overhead Crane Types

Selecting the right crane type depends on multiple variables: available space, headroom, lifting capacity, and operational frequency. While single and double girder designs are the most common, gantry cranes offer flexibility for outdoor or temporary setups. Understanding the trade-offs between them is key to making a decision that balances performance, cost, and space constraints.

Choosing Between Single and Double Girder Systems

Single girder cranes are lighter, more compact, and typically more economical, making them ideal for loads up to around 20 metric tons. However, their lower headroom and reduced torsional rigidity limit their use in high-capacity or high-precision applications. Double girder systems, on the other hand, can support loads exceeding 100 tons and allow for higher lifts due to the separate trolley and hoist configuration. They also offer better stability and are the go-to choice for heavy industries like shipbuilding or power plant maintenance.

Adaptability through Custom Crane Solutions

Many facilities weren’t built with cranes in mind. Retrofitting a lifting system into a structure with low headroom or obstructed spans requires creative engineering. Solutions include underslung cranes, monorails, or compact trolley designs that maximize vertical clearance. In some cases, engineers modify existing building columns or add reinforced runways to distribute crane loads safely. This level of customization is where expertise truly makes the difference-off-the-shelf designs simply can’t address these complex spatial challenges.

Frequently Asked Questions

Are there lighter alternatives for facilities that cannot support heavy bridge cranes?

Absolutely. For lighter loads or structural limitations, wall-mounted jib cranes or workstation gantry systems offer effective alternatives. These compact solutions can handle up to 2 tons and are ideal for assembly stations or machine tending. They require minimal building reinforcement and can be installed with relative ease, making them a practical choice for small to mid-sized operations.

How is the integration of smart sensors changing crane engineering today?

Smart sensors are transforming maintenance from reactive to predictive. Modern cranes increasingly feature load cells, vibration monitors, and temperature sensors that feed data to centralized systems. This allows for real-time load monitoring, immediate detection of overloading, and early warnings for component wear. The result is fewer unplanned downtimes and longer equipment life-predictive maintenance is becoming standard in high-availability environments.

What is the first technical step for a facility never equipped with overhead lifting?

The first step is always a structural assessment. Engineers conduct a runway survey to evaluate the building’s load-bearing capacity, column spacing, and headroom. This includes checking roof trusses, support beams, and foundation stability. Without this baseline, any crane installation risks structural overload or misalignment-so it’s not just recommended, it’s essential.

What happens once the initial crane installation services are completed?

After installation, the crane undergoes a series of tests: no-load operation checks, rated load tests, and overload trials (typically at 125% of capacity). Only after all systems pass inspection is the crane certified for use. Following this, operator training ensures that personnel understand emergency procedures, load handling, and daily inspection routines-this completes the handover process.

How often should a heavily used crane undergo structural engineering audit?

For high-duty cranes (Class D to F), inspections should occur every 12 to 18 months. These audits go beyond visual checks-they include ultrasonic testing of critical welds, measurement of deflection, and assessment of wear on wheels and rails. In extreme environments like foundries, more frequent evaluations may be necessary to catch thermal fatigue or corrosion early.

Can existing cranes be upgraded instead of replaced?

Yes, modernization is often more cost-effective than replacement. Common upgrades include new hoists, digital controls, safety limiters, and remote monitoring systems. Engineering modifications can also extend a crane’s lifespan by reinforcing girders or adapting it to higher loads. A thorough assessment determines whether rehabilitation is viable-many cranes from the 1980s are still in service thanks to strategic upgrades.
